2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable

Product Categories
Dongguan Mingtong Optoelectronics Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable

  • 1
  • 2
  • 3

Brand Name : MingTong

Certification : ISO

Place of Origin : Dongguan CHINA

Price : 500-3000RNB/KM

Payment Terms : L/C,T/T

Delivery Time : It depends on the actual situation

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Supply Ability : 200km/Day

Name : Black Outdoor Fiber Optic Cable

Model No : GYXTW

Outer Sheath Material : PE

Strength Member : Steel Wire

Filler : Jelly

Fiber Count : 2-288

Brand Name Of Fiber : Corning ,Yofc,Draka,Fujikura Or As Your Requiremen

Waterblocking Material : Water Blocking Tape

Installation Style : Aerial,Duct,Connecting Communication Equipments,Indoor Shaft,Building Wiring

Highlight : GYXTW Outdoor Fiber Optic Cable, PE Sheath Outdoor Fiber Optic Cable, 12 core gyxtw fiber optic cable

Contact Now

2 4 8 12 Core Black Anti-UV PE Sheath GYXTW Outdoor Fiber Optic Cable

Outdoor Fibre Cable Optical Fiber - GYXTW Price 2/4/8/12 Core

The single mode fiber optic cables, 250μm, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube water-blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. The cable is completed with a polyethylene (PE) sheath.

Characteristics


1. Single jelly compound filled loose tube containing up to 24 fibers
2. Waterproof tape between the steel tape and loose tube with jelly compound.
3. Duble-sided PE corrugated steel tape armored.
4. Parallel double steel wire as strength member.
5. Compact structure, light weight, steel tape armored excellent water-proof layer, good moisture.

Applications

1. Suitable for ducts & aerial.
2. Long distance communication system.
3. Local area network system.
4. Subsriber network.

Specifications

Fiber count cable diameter Cable Weight Tension(N) Crush(N/100mm) Bending radius(mm)
2-30 9.6 90 600 1500 300 1000 10D 20D
32-36 10.0 97 600 1500 300 1000 10D 20D
38-60 10.4 112 600 1500 300 1000 10D 20D
62-72 11.0 130 600 1500 300 1000 10D 20D
74-96 12.5 165 600 1500 300 1000 10D 20D
98-120 14.0 190 600 1500 300 1000 10D 20D
122-144 16.5 204 600 1500 300 1000 10D 20D

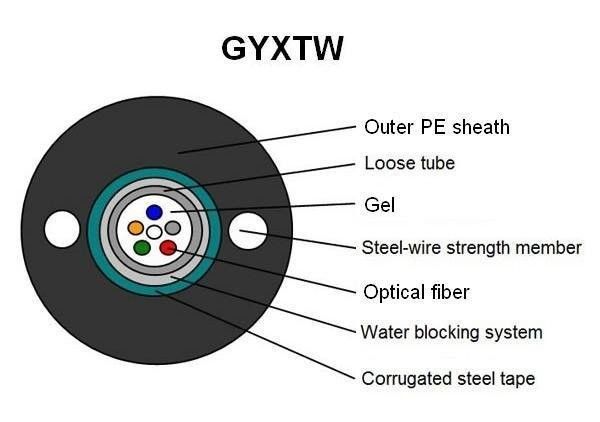

Product Structure

2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable2 4 8 12 Core Black Outdoor Fiber Optic Cable Anti UV PE Sheath GYXTW Fiber Cable
