FTTH 1 2 4 Core GJYXFCH G657A1 Fiber Optic Drop Cable Indoor Outdoor

Name: FTTH 1 2 4 Core GJYXFCH G657A1 Fiber Optic Drop Cable Indoor Outdoor
Brand: MingTong
Price: 300 USD

Brand Name : MingTong

Certification : ISO

Place of Origin : Dong Guan China

Price : 300-2000RNB/KM

Payment Terms : L/C,T/T

Supply Ability : 200km/Day

Delivery Time : It depends on the actual situation.

MOQ : 20km

Packaging Details : Wooden scroll + cardboard box / Wooden scroll + wooden board

Product Name : Fiber Optic Drop Cable

Fiber Type : Single-Mode G657A1/G652D

Number Of Fiber : 2

Construction : Self-supporting With FRP/Steel Messenger

Cable Diameter : (2.0±0.2)X(5.0±0.2)mm

Outer Jacket Materail : LSZH

Tensile Strength : 100/200N

Highlight : G657A1 Fiber Optic Drop Cable, GJYXFCH Fiber Optic Drop Cable, ROHS FTTH Drop Cable

Name : Butterfly Drop Cable

Contact Now

Product Description

FTTH 1 2 4 Core GJYXFCH G657A1 Fiber Optic Drop Cable Indoor Outdoor

Outdoor self-supporting steel wire drop fiber optic cable 1 2 4 6 core g657a1 ftth drop wire Cable,FTTH

outdoor drop cable is constructed with two single mode fiber. The cable is protected by a dielectric

strength member made of three steel wire and a LSZH outer jacket. Designed for outdoor installation the

cable is well suited for connections between the dome closure and small dwelling unit / warehouse and

independent villas.

single mode 1core 2 Core G657A LSZH Outdoor Fiber Optic FTTH Drop Cable

Feature:
1. Robust and lightweight
2. Colour coded fibers for easy identification
3. LSZH jacket for internal use
4. Steel wire support

Application

1. Outdoor aerial application
2. Used in the FTTH projects
3. High performance optical network operation
4. High speed optical routes in building

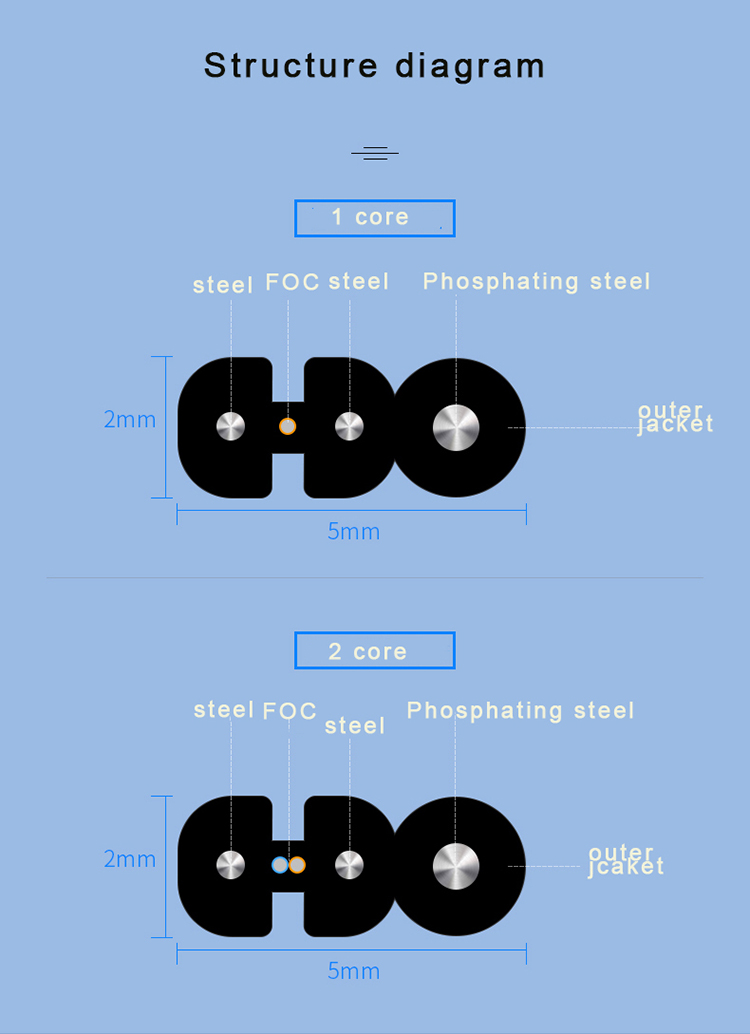

Structure

Structure		Unit	Parameter
Fiber count		Fibers	2
Diameter		mm	5.0*2.0
Weight		Kg/km	Approx.21
Sheath color			Black
Sheath material			LSZH
O.D of steel wire		mm	1.0±0.05mm
Strength member		mm	0.5mm FRP
Tensile strength		N	1500
Crush Resistance		N	2200
Bending Radius	Dynamic		30×Cable Diameter
	Static		15×Cable Diameter
Operating Temperature		℃	-40 --- +70

Test Datasheet

Category	Description		Specifications
			G.657A1
Optical Specifications	Attenuation	@1310-1625nm	≤0.36dB/km
		@1383±3nm	≤0.36dB/km
		@1550nm	≤0.22dB/km
	Attenuation discontinuity		≤0.05 dB
	Attenuation vs. Wavelength	@1285~1330nm	≤0.05 dB/km
		@1525~1575nm	≤0.05 dB/km
	Zero Dispersion Wavelength		1300~1324nm
	Zero Dispersion Slope		≤0.092ps/(nm2.km)
	Dispersion	@1310nm	≤3.5 ps/nm.km
		@1550nm	≤18 ps/nm.km
	Polarization Mode Dispersion(PMD)		≤0.2ps/km1/2
	Cable Cutoff Wavelength(λcc)		≤1260nm
	Effective Group Index of Refraction	@1310nm	1.4675
		@1550nm	1.4681
	Macro bend loss (30mm radius ,100turns) 1625nm		≤0.1 dB
Geometric Specifications	Mode Field Diameter	@1310nm	9.2±0.6μm
		@1550nm	10.4±0.8μm
	Cladding Diameter		125±1μm
	Cladding Non-Circularity		≤1.0%
	Coating Diameter		245±7μm
	Coating/Cladding Concentricity Error		≤8μm
	Core/Cladding Concentricity Error		≤0.8μm
Mechanical Specifications	Proof Test level		≥1.0%
	Fiber Curl Radius		≥4.0m
	Peak Coating Strip Force		1.3~8.9N
